- INNOVATIVE – designed for use with LED fixtures using 0-10V power supplies for dimming lighting in commercial spaces such as hotels, restaurants, offices and other public spaces
- ADVANCED – no power pack required for switching
- VERSATILE - Dual voltage 120V/277V; 50mAmps maximum sink current
- EXCEPTIONAL – Superior quality and dimming performance
- FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately)
- CONVENIENT – Separate on/off switch allows you to set and keep preferred dimming level
- STYLISH - easily change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red
Product Description

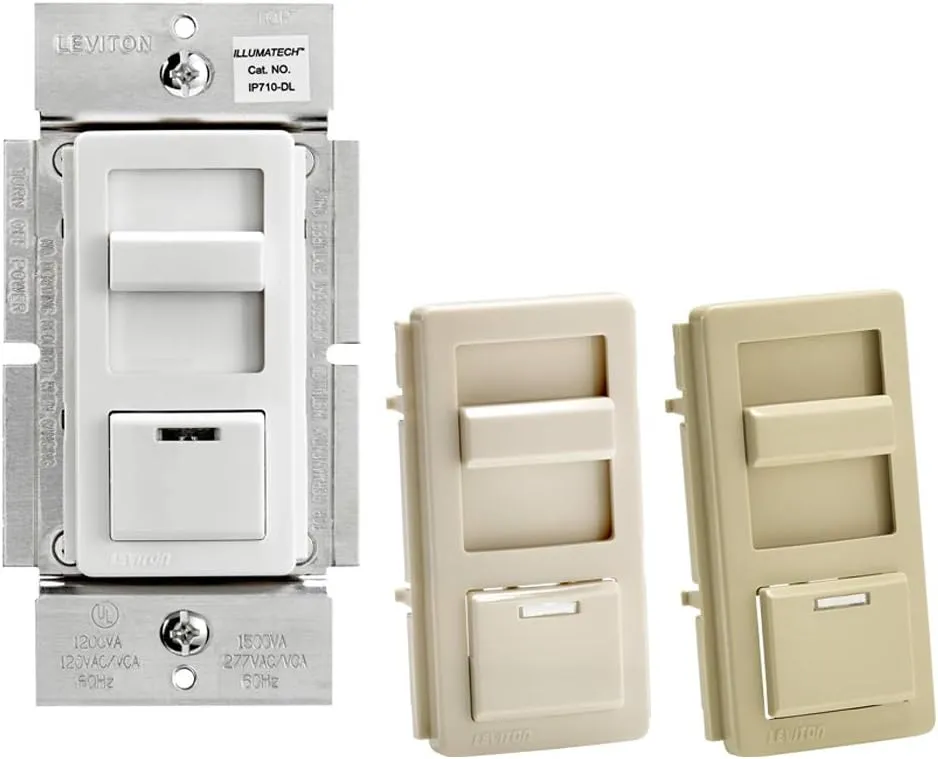

The IP710-DLZ dual voltage 0-10V dimmer is designed to dim lighting in commercial spaces such as hotels, restaurants, offices and other public spaces. This dimmer controls the ballast directly which allows dimming of the lighting fixture without the need for a power pack. Works with the latest array of 0-10V LED fixtures and dims from 10%, 1% or as low as 0.1% with compatible driver. LED locator light makes it easy to find the dimmer when dark. 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current. Single pole or 3-way control when used with 3-way switch. Comes in white, with ivory and light almond faceplates included. Wallplate sold separately.
From the Manufacturer
IllumaTech Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies with LED locator light. Suitable for use with Class 1 or Class 2 wiring. 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 28mAmps maximum sinking current. Single pole or 3-way control when used with 3-way switch. Comes in white, optional ivory and light almond faceplates included. Wallplate sold separately.
