Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

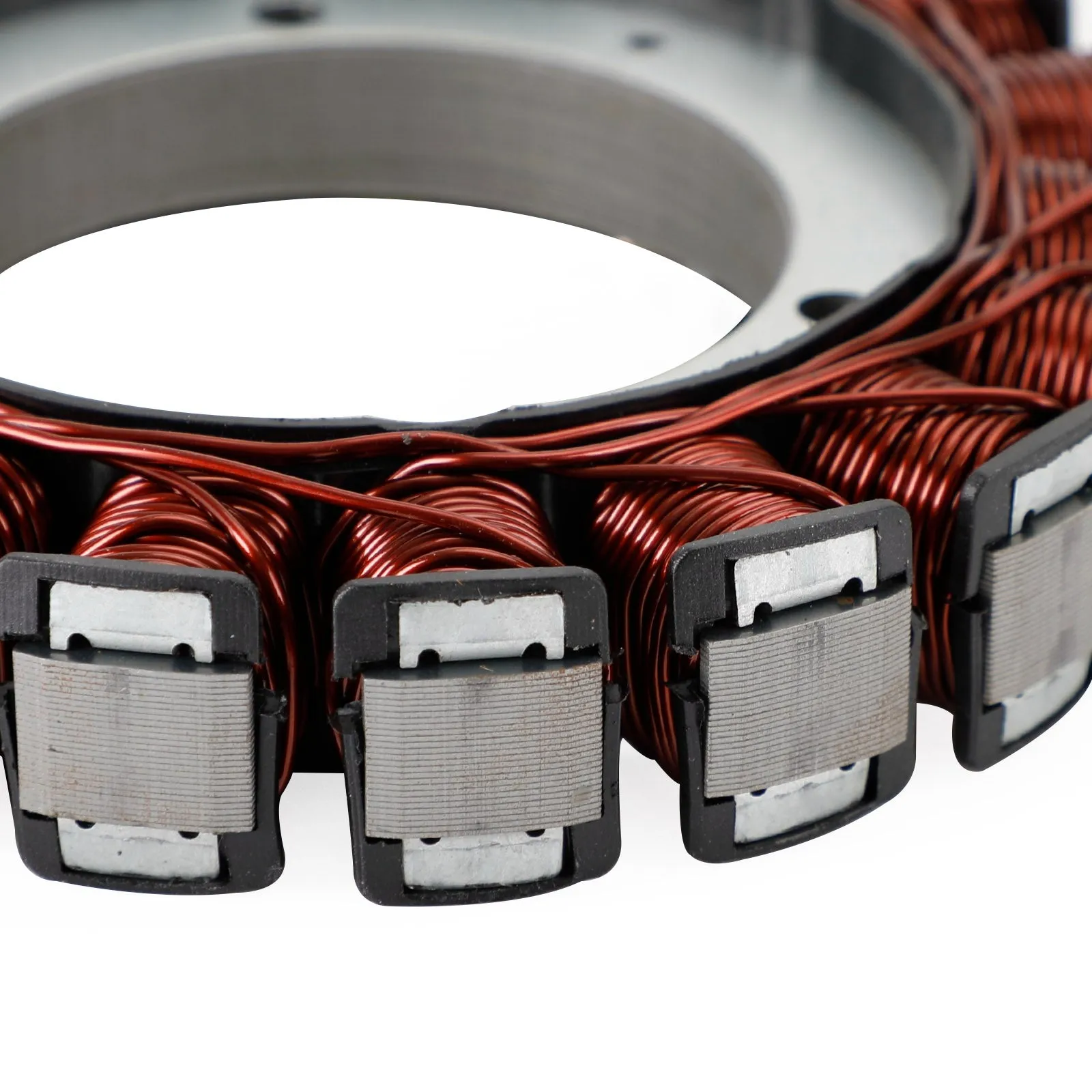

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

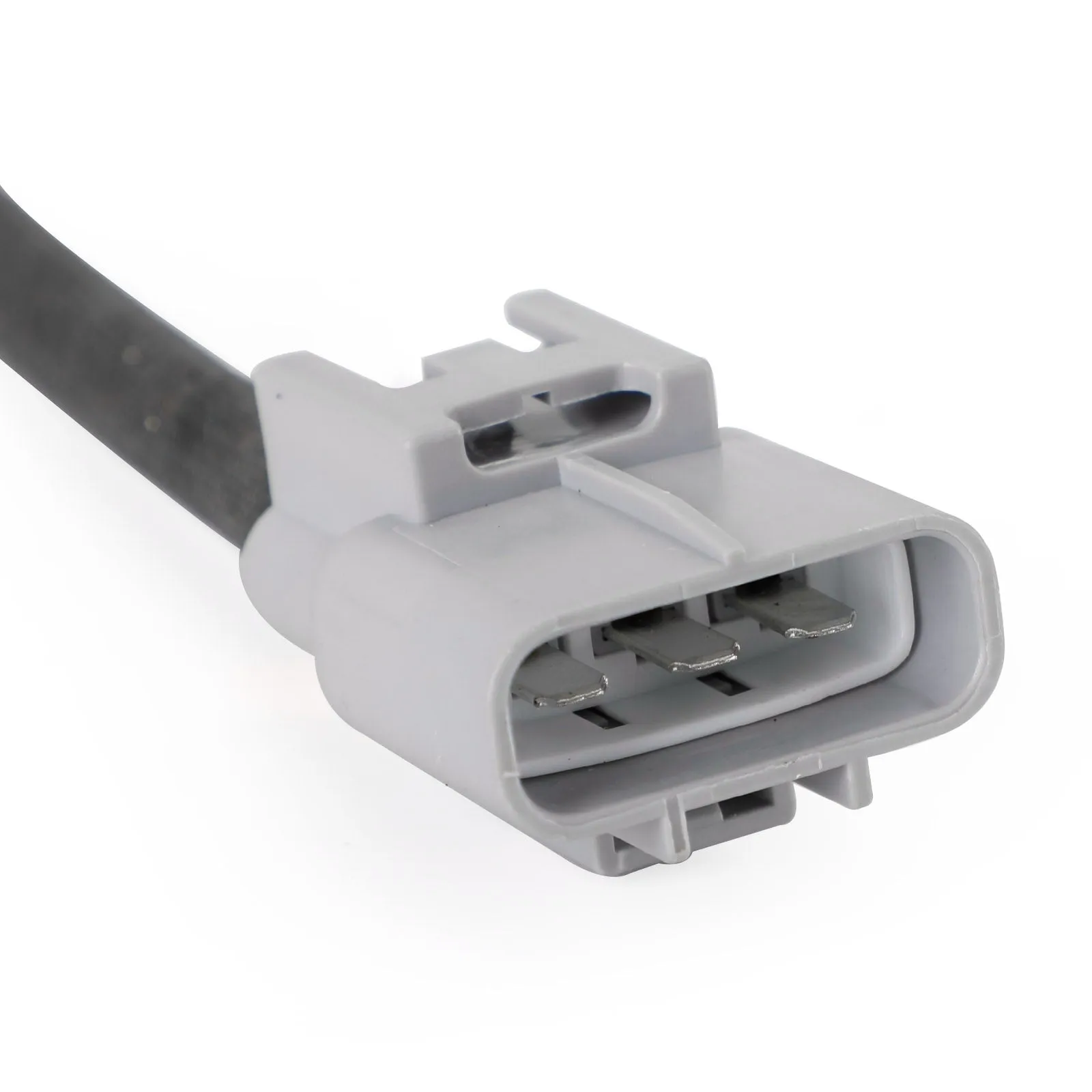

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

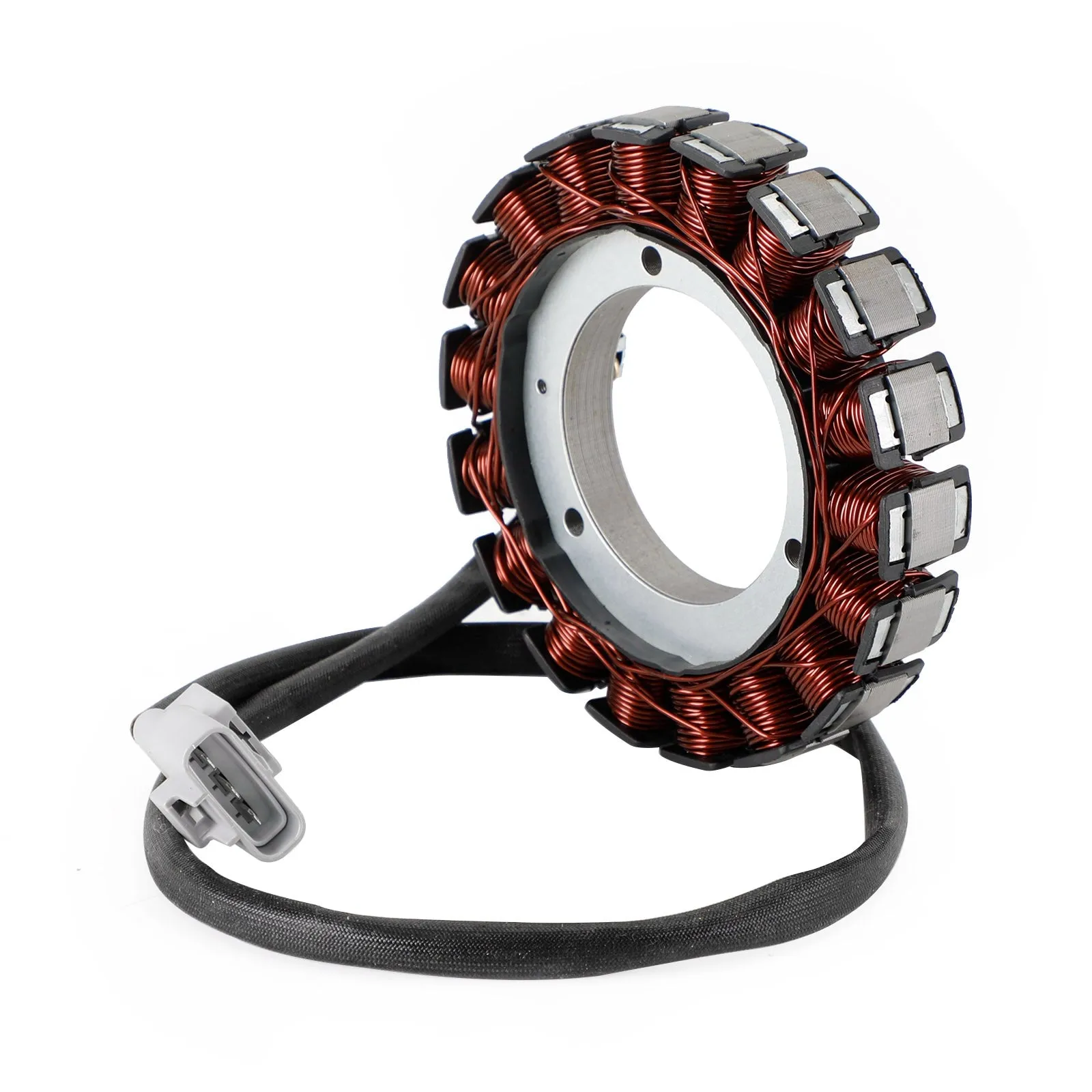

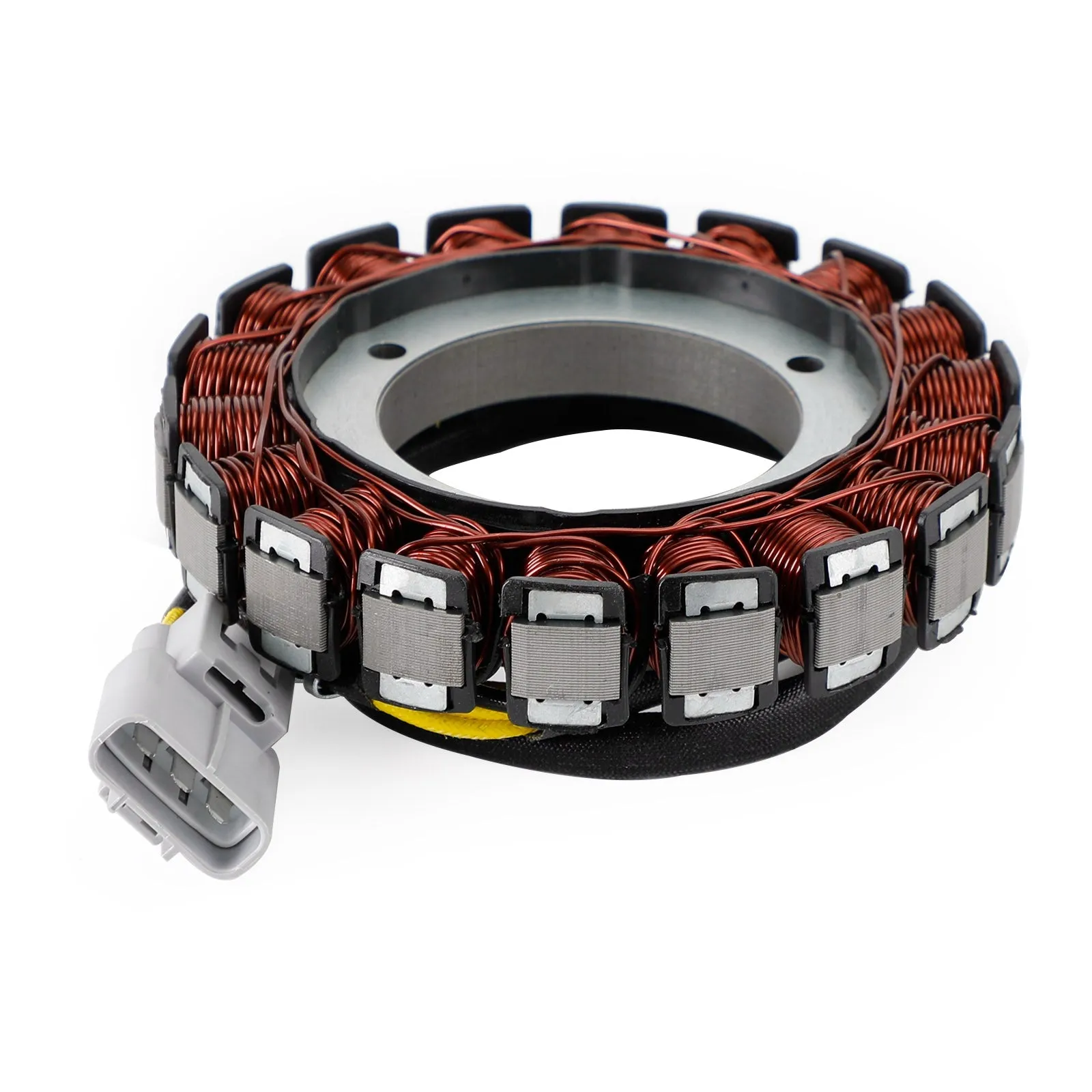

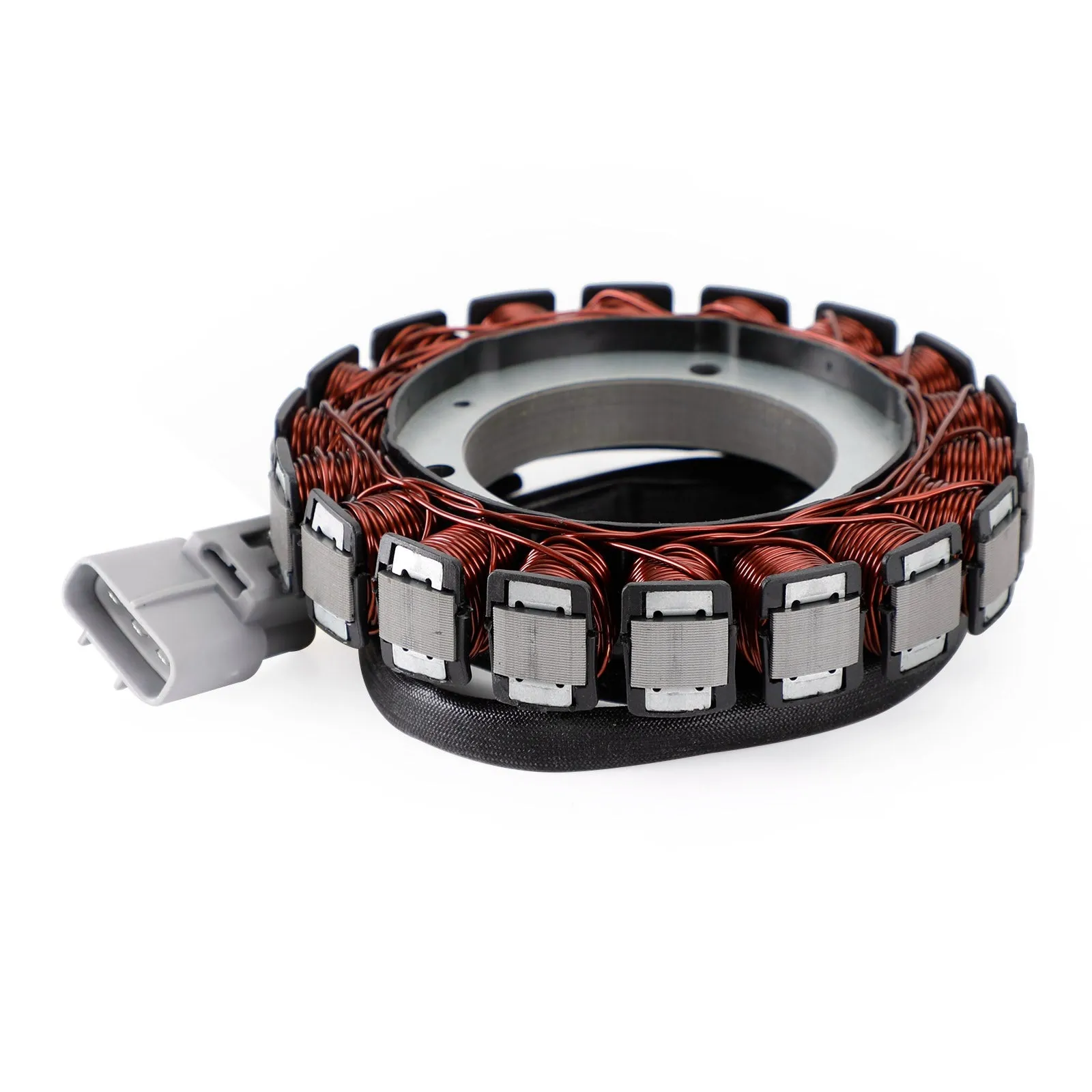

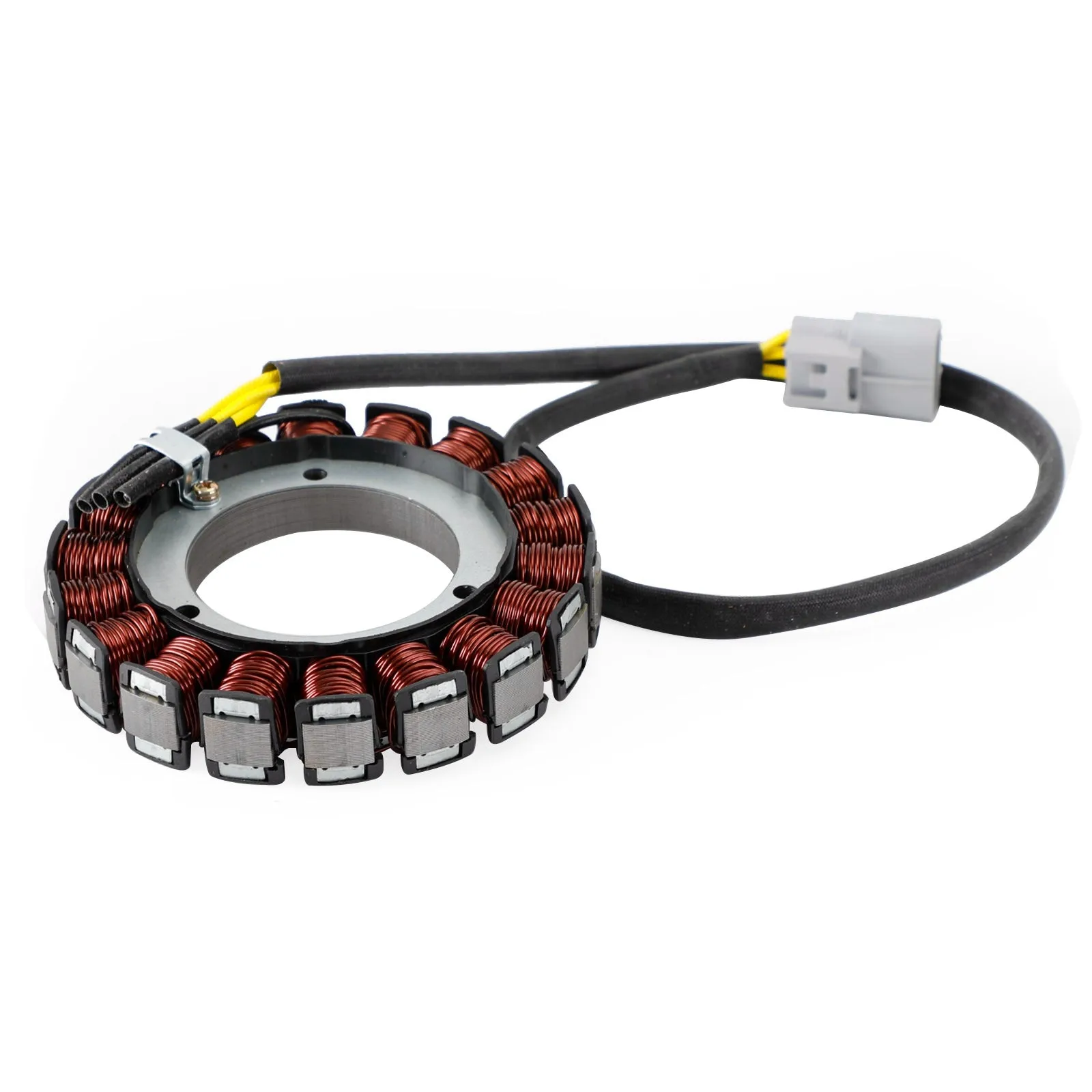

Type: Stator Charging Coil
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Replacement Part Number:
59031-2136

Fitments:
Fit for Kawasaki KAF620 Mule 4000 2009-2018
Fit for Kawasaki KAF620 Mule 4000 Trans 2018-2020
Fit for Kawasaki KAF620 Mule 4010 Trans 2018-2023
Fit for Kawasaki KAF620 Mule 4010 4X4 2009-2018
Fit for Kawasaki KAF620 Mule 4010 4X4 SE 2016-2018
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 2009-2018
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 Camo 2014-2018
Fit for Kawasaki KAF620 Mule 4010 4X4 Hardwoods Green HD 2009-2013

Package Included:
1x Stator Charging Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling?time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
